• True volumetric air flow control with 3 atmospheric pressure and temperature sensors

• Sampling flow-rate continuously regulated to the atmospheric temperature and pressure: reduces evaporation artefacts of volatile compounds (mandatory for PM2.5 according to EU regulations)

• Automatic calibration of the real time optical module (OPM) to the reference measurement (ß gauge)
  Flow calibration possible during the measurement

• Built-in reference gauge for calibration: no need for factory re-calibration

• Calibration screen for atmospheric pressure sensors

• Regulated Sampling Tube (RST) compliant with CEN PM10 and US-EPA standard: sample not affected by seasonal or geographical factors and avoids evaporative losses of semi-volatile particles

• Fibreglass tape with 3 years of autonomy of continuous sampling with daily cycles (1200 cycles)

• Low activity C14 sealed flat source with analyzer lifetime duration

• Rugged instrument, not sensitive to vibration, humidity, temperature…

• New: On board web server compatible with any internet browser. ENVEA Connect™ user interface with on-line help for the display, configuration, maintenance, diagnostics or software updating of the analyser, remotely, from any PC, tablet or smartphone.

Options and accessories:

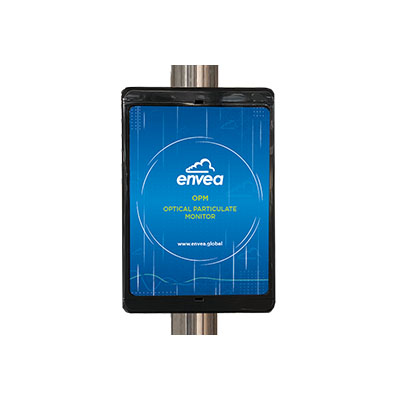

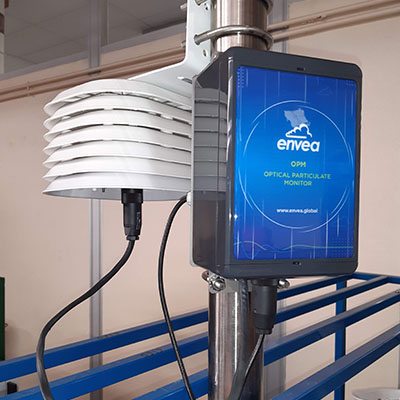

• OPM module for optical real-time measurement
• US EPA and EU-CEN compliant sampling inlets
• Temperature-regulated sampling tube (RST): 1 m, 1.5 m, 2 m, 2.75 m, compliant with CEN PM10 Directive
• Max 2 ESTEL electronic boards with:
  – 4 independent analog inputs / outputs
  – 4 remote control inputs
  – 6 dry contacts outputs
• External pump assembly: diaphragm (9.5kg), rotary vane (7kg)
• Easy to install span calibration module for automatic and programmable calibrations
• Field connection kit for leak and zero test (on RST tube)
• Laboratory connection kit for leak and zero test (on MP101M)
• Bead flowmeter for leak test
• HEPA filter for zero test
