O342e
e-Series Ozone analyzer O₃
LED based, UV Photometric Ozone Analyzer providing accurate, stable and repeatable O3 measurements in the range of 0-500 ppb or 0-10 ppm.
Ozone monitor for regulatory compliance: QAL1 certified by the TUV, US-EPA approved. Eco-designed, reference air quality monitor using LED based UV Photometry technology (patented). With its ultra low power consumption & 24 V supply (option), the O342e is the only ozone monitor on the market able to measure without being connected to the power grid.
Multi-screen remote access via Wifi or Ethernet using the ENVEA Connect™ application for control, diagnostics, software upgrade
FEATURES AND BENEFITS
- Cost-saving ozone monitor with ultra low power consumption, 24 V supply (option) and able to withstand temperatures up to 45-50 °C without air conditioning
- Maximum efficiency, minimum size: compact, lightweight, offering the best metrological performances for O3 measurements in the range of 0-500 ppb or 0-10 ppm

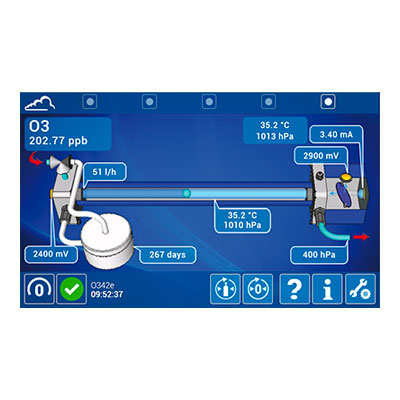

- Real-time calibration graph, animated synoptic, auto-diagnostic, control and maintenance data screens can be displayed while the instrument is operating
- Simultaneous multi-screen remote emulation of the analyzer: minimizes training and on-site expensive expertise needs
- Service assistant inside: detects early signs of trouble, allows predictive maintenance, identifies the service needed and guides the service operations step by step
- User-friendly: one click to perform zero, span or calibrations using O3 gas generators
- Automatic recognition of plugged electronic boards or optional devices: plug and play principle.
- Embedded Communication Protocol for XR® Software with automatic recognition and configuration
- Smart, connected instrument with embedded web server for the easiest, full remote control and operation of the analyzer from any PC, tablet or smartphone (configuration, calibration, test, diagnostic parameters…)
MAIN APPLICATIONS
- Ozone monitor for regulatory compliance: continuous indoor and outdoor air quality monitoring
- Mobile AAQMS laboratories and fixed air quality monitoring stations for pollution monitoring
- Compact, Solar powered or on battery air quality monitoring stations ( Green energy )
- Industrial fence-line monitoring
- Continuous emissions monitoring (CEM) by dilution
- Background (urban or suburban), Rural, Traffic, Kerbside measurement campaigns and monitoring studies
- Laboratory and field studies on ozone effects
TECHNICAL INFORMATION
O₃
UV photometry & LED
YES
0-1 ppm / 0-10 ppm
ppb, ppm, µg/m3 (user-selectable)
0.2 ppb
0.1 ppb
< 0.5 ppb / 24h, < 1 ppb / 7 days
< 0.5% / 24h, < 1% / 7days
± 1% FS
1L/min
Internal
0°C to +35°C
1 year
1LAN/3USB/WIFI/2DRY
9.5
483 x 606 x 133
19″ Rack, 3U
‘100~250Vac, 50/60Hz + ground
YES
APPROVALS & CERTIFICATIONS
COMPLIANCE WITH:
- 2008/50/EC, EN 14625 (2012), EN 15267 40 CFR PART 53 AND 40 CFR PART 58
- QAL 1 certified by the TÜV to N° 0000043106
- U.S. EPA approved as compliant with EQOA-0515-225
